CityRay
Truck Mounted Road Sweeper

Download Our Brochure
Watch our demonstration video

Outlining the standard features and operation of the CityRay suction road sweeper.

Compatible Chassis

Mike Trace Engineering custom fits and engineers CityRay bodies to a variety of chassis types. We can provide brochures and detailed specifications for any chassis; just contact us and we’ll be happy to assist.



The main chassis we work with include:

ISUZU - VOLVO - HINO - IVECO

We can also mount our sweepers to other chassis upon request. If you have a specific chassis in mind, please let us know.

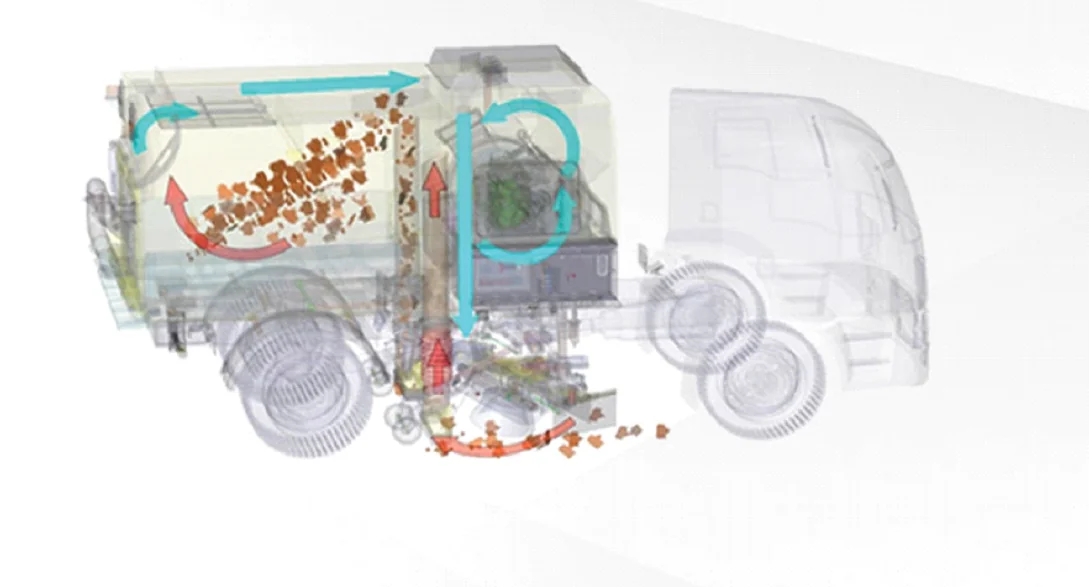

Design
What makes the CityRay a Standout!
  • Manufactured by one of the largest sweeper manufacturers, distributing to over 50 countries worldwide.

  • Designed in collaboration with Mike Trace Engineering to meet Australian conditions and needs. (Over 30 years experience)

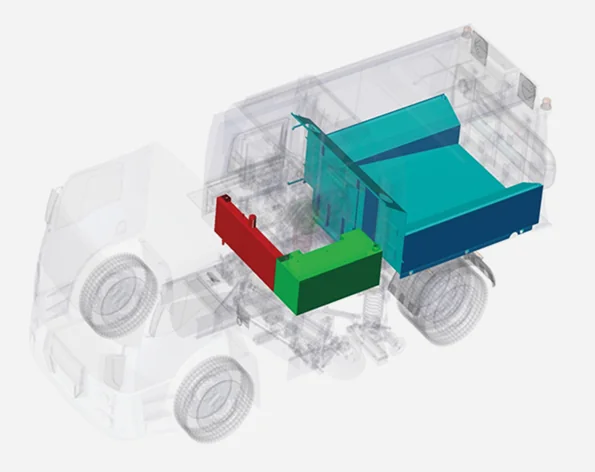

  • Robust design with stainless-steel hopper available from 4-10 cubic meters in size with a stainless steel water tank available from 900L to 2400L

  • Extra water jets on gutter brooms to assist with dust suppression with individual isolation switches

  • Low- and high-pressure spray bars

  • Rear mounted pit sucker, gas assisted (optional electric/pneumatic)

  • High performance whilst saving fuel

  • Low noise due to noise suppression kits and isolation materials surrounding engine area and fan

  • Low maintenance

  • Ergonomic and user friendly in cab controls

  • Fan connection is made though torque converter

  • Hand lance on 10m hose

  • 55-degree discharge angle

  • 300L fuel tank (one tank for sweeper and truck)

  • 7 LED work lights

  • LED flashing lights on 4 corners

  • LH and RH gutter broom tilt

  • Auto body prop and manual rear door prop

  • Auto drop screen filters for ease of cleaning

  • Audible reverse alarm

  • 3-way camera system

  • Blind spot camera

  • Safety walkway for aux engine access

  • DC pack to electrically operate hydraulics in emergency

  • Manual hydraulic pump to raise body if electrics and power unit fail

  • Two high pressure water pumps one at 200bar, 2900psi, 30L/min water system for hand lance on 10m hose and 100bar, 1450psi, 20L/min for front high pressure spray bar.

  • Safety feature: horn sounds if cab door opened without engaging park brake

  • Brooms will not operate if cab door is open, hopper door is open or body is raised

  • Rubber lined side and middle deflector plates in hopper

  • Screen vibrator

  • Mounted joystick

  • Gutter broom variable positioning, adjustable pressure and speed

  • Centre broom adjustable pressure and can be prioritized left or right

Specifications



Hopper Tank Capacity (m³)

Sweeping Speed (km/h)

Sweeping Width (either left or right) (mm)

Sweeping Capacity (m²/h)

Water Tank Capacity (litre)

Water Tank Material

Machine Length (mm)

Machine Width (mm)

Machine Height (mm)

Empty Total Weight (kg)

Hydraulic Oil Tank Capacity (litre)

Water Pump (bar)

Discharge Angle

Side Brush Plate Diameter (mm)

Central Brush Diameter (mm)

Central Brush Length (mm)

Number of Water Nozzle (pc)

Suction Nozzle (mm)

Side Suction Hose Diameter (mm)

Rear Suction Hose Diameter (mm)

Rear Suction Hose Length (m)

Washing Gun Hose Length (m)

Auxiliary Engine Type

Auxiliary Engine Power (kw)

Cameras, Direction Signs, Reflectors

LCD Monitor

Required Chassis GVW (tonne)

Required Chassis Wheel Base (mm)

Required Chassis Axle

Required Chassis PTO

Required Chassis Cabin

Rear Door Opening Angle

Mesh Filter Surface Area (m²)

In Cab Noice (db)

CityRay 5

Nominal 5.5 m3

0-15

2300

34500

1300L

Stainless Steel

4000

2250

2070

4500

80L

Max.100

55 Degrees

450

400

1250

Min 25

708*228

230

153

5m

10m

Diesel

74Kw

Equipped

Equipped

12-14 tonne

3500-3800

4x2

Not Necessary

Single

110 Degrees

1,09

<75

CityRay 6

Nominal 6.5m3

0-15

2400

36000

1700L

Stainless Steel

4200

2250

2220

4700

80L

Max.100

55 Degrees

450

400

1250

Min 25

708*228

230

153

5m

10m

Diesel

74Kw

Equipped

Equipped

15-16 tonne

3800-4250

4x2

Not Necessary

Single

110 Degrees

1,09

<75

Let us provide you with a quote that meets your needs, we are very competitive.

Our Customers

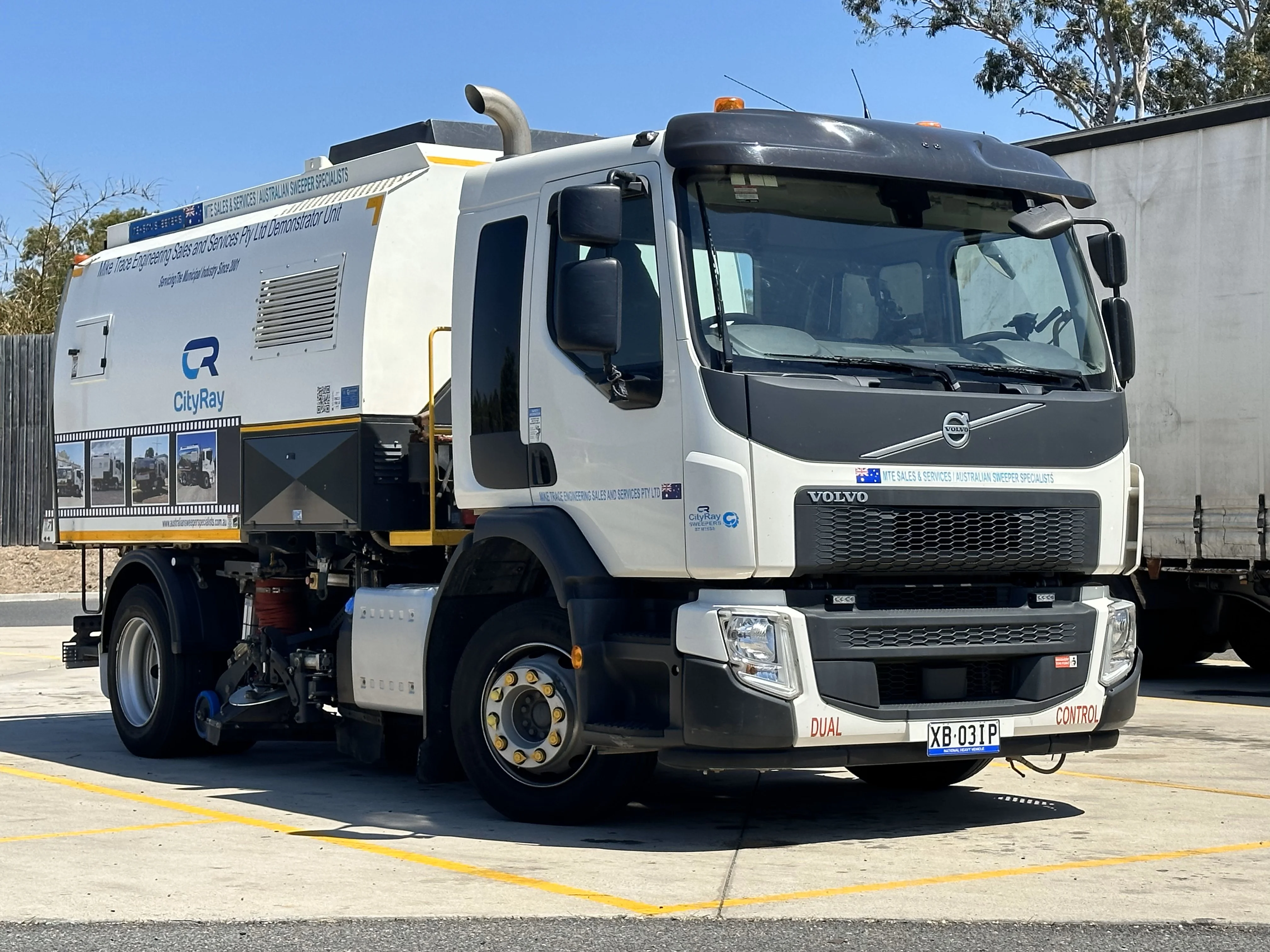

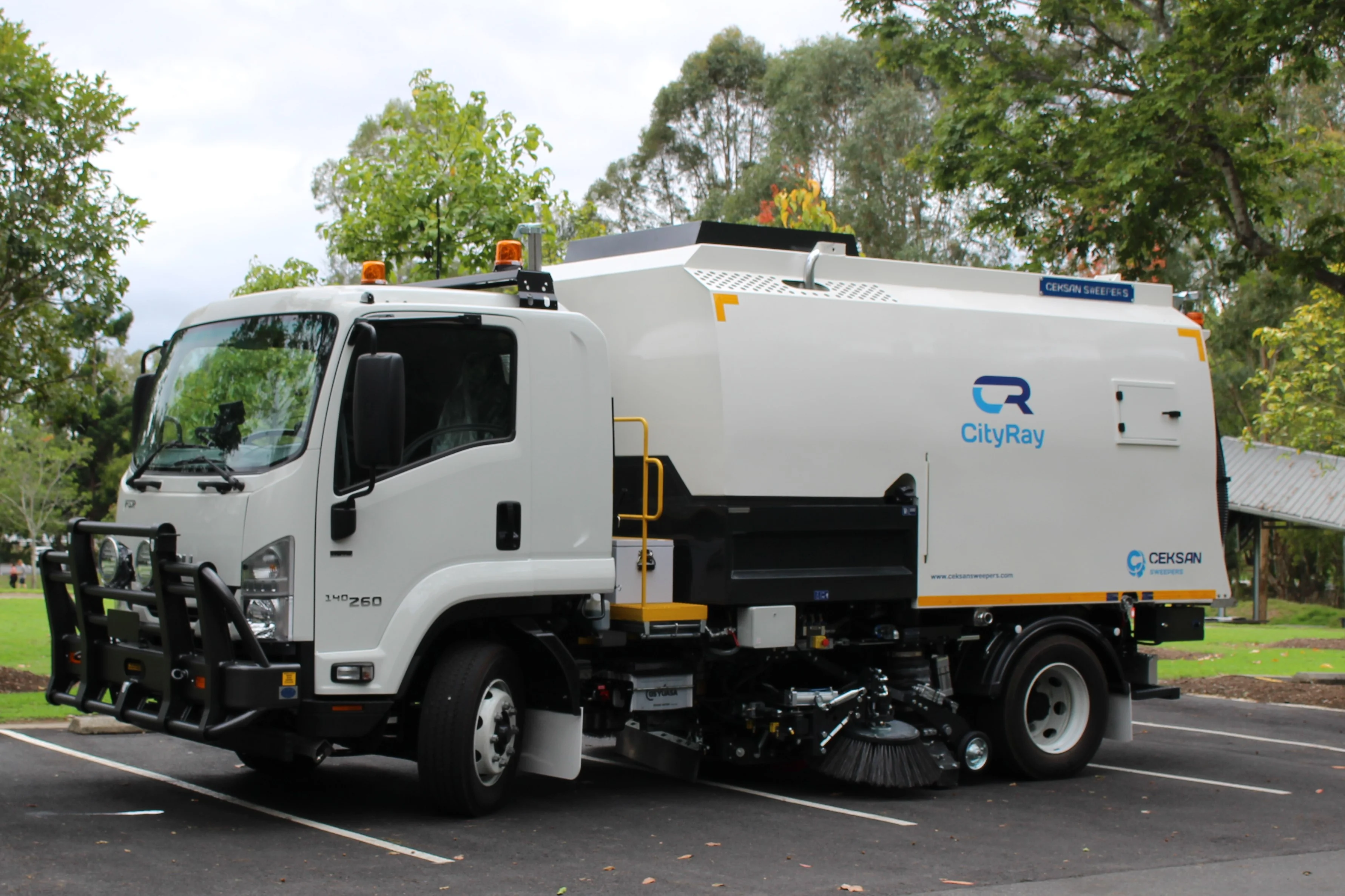

THE CITYRAY GLIDES THROUGH GUTTERS
LEAVING NOTHING BEHIND
BLIND SPOT CAMERA

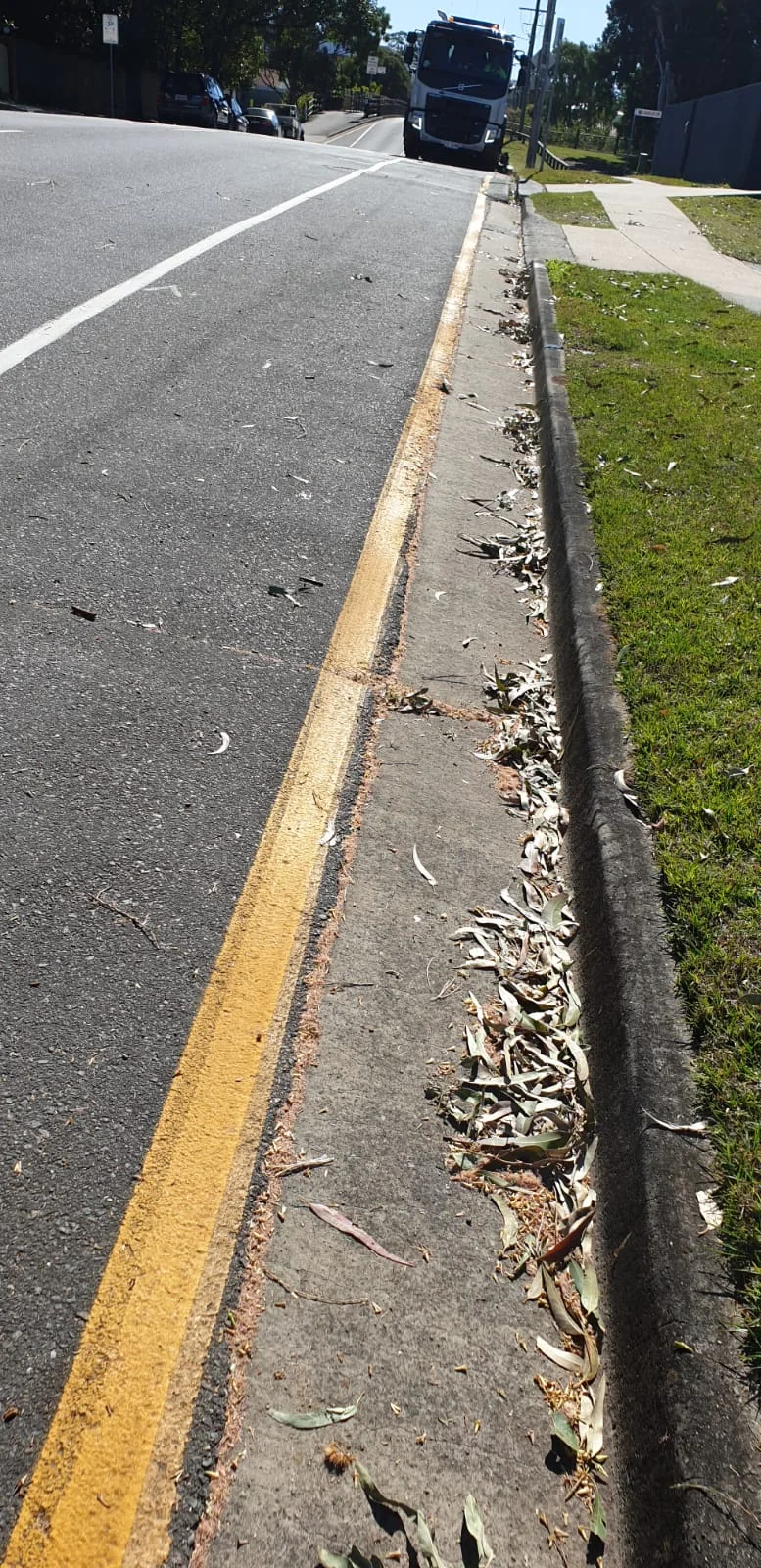

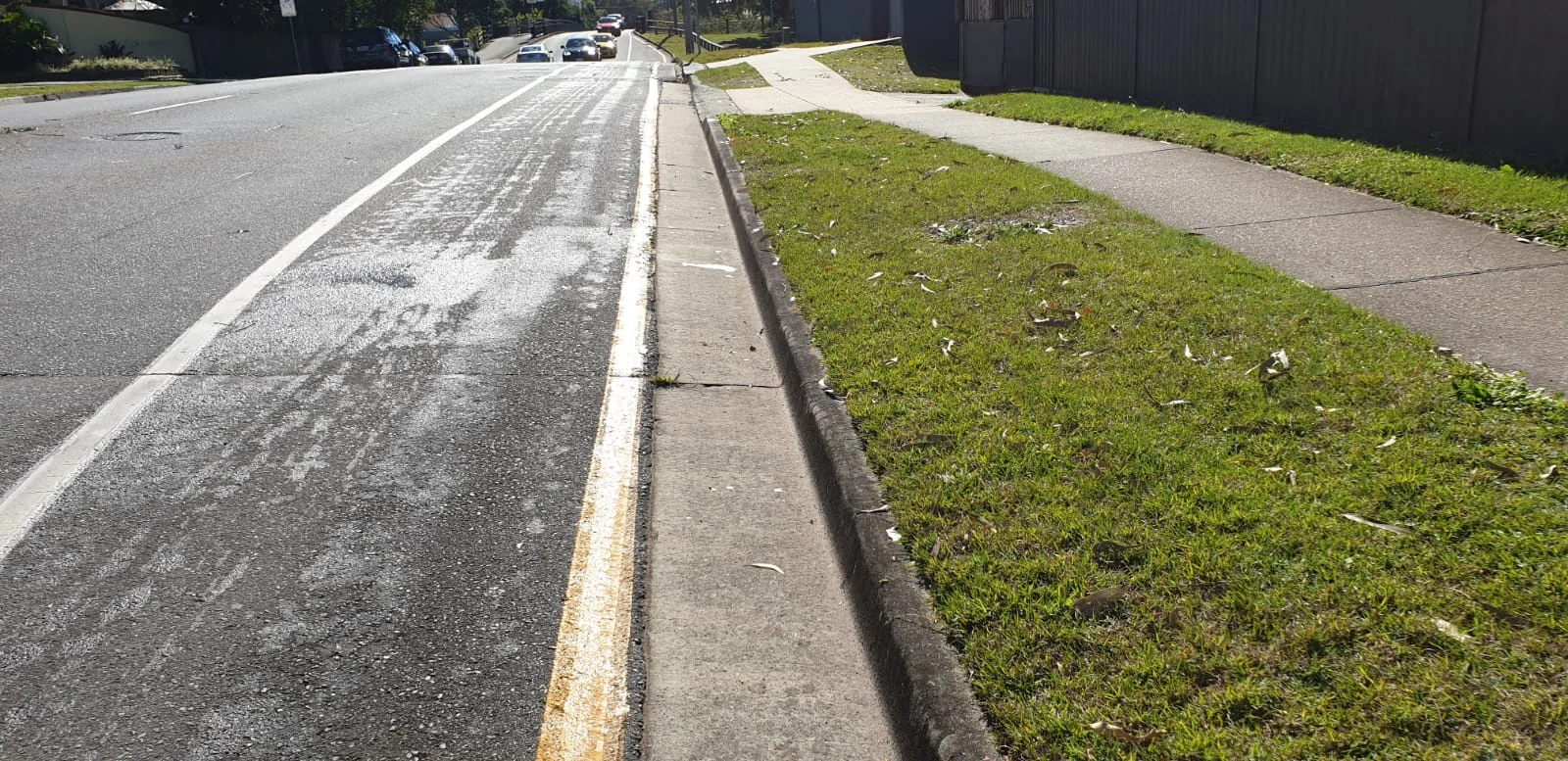

BEFORE AND AFTER A CITYRAY SWEEPING
